class: center, middle, inverse, title-slide .title[ # Self-exciting point process models ] .subtitle[ ## Charlotte M. Jones-Todd ] .author[ ### ] .institute[ ###
University of Auckland ] .date[ ### .typed[] ] --- --- #
I am not a robot <img src="img/recaptcha.jpg" width="40%" style="display: block; margin: auto;" /> --- # Patterns in points
Statistics in Medicine (2018)
Identifying prognostic structural features in tissue sections of colon cancer patients using point pattern analysis
Jones-Todd, Charlotte M. et. al.
.center[ <img src="img/cancer_im.png" width="100%" style="display: block; margin: auto;" /> ] --- #

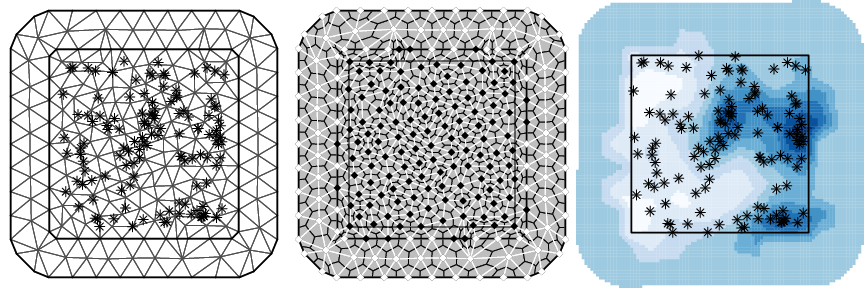

`INLA` Integrated Nested Laplace Approximation (INLA) -- - Approximate Bayesian inference for Latent Gaussian Models - `INLA`verse - `INLABMA` - `inlabru` - `INLAMSM` - `nmaINLA` - `rSPDE` - ... --- # Spatial LGCP <br> <br> `$$\Lambda(\underline{s}) = \text{exp}(\boldsymbol{X \beta} + G(\underline{s}) + \epsilon)$$` - `\(\boldsymbol{X \beta}\)`, design matrix - `\(G(\underline{s})\)`, Gaussian Markov Random Field (GMRF) - `\(\epsilon\)`, error `\(G(\underline{s})\)` has a Matérn covariance with parameters `\(\tau\)` and `\(\kappa\)`, where - `\(r=\frac{\sqrt{8}}{\kappa}\)` is the range, and - `\(\sigma=\frac{1}{\sqrt{4\pi\kappa^2\tau^2}}\)` standard deviation --- # INLA-SPDE <br> <br> ![](img/lgcp-fit.png) --- #
`TMB` <br> <br> <br> Template Model builder (`TMB`) `R` package for fitting latent variable models - Calculates first and second order derivatives of the likelihood function by AD (or any objective function written in `C++`) - The objective function (and its derivatives) can be called from `R` - The user can specify that the Laplace approximation should be applied to any subset of the function arguments - Yields marginal likelihood in latent variable model - Standard deviations of any parameter, or derived parameter, obtained by the delta method --- # `TMB` in summary <br> <br> <br> A TMB project consists of an `R` file and a `C++` file. The R file does pre- and post processing of data in addition to maximizing the log-likelihood contained in *.cpp. The purpose of the C++ program is to evaluate the objective function. The program is compiled and called from R, where it can be fed to a function minimizer (e.g., `nlminb()`). --- # `TMB` in summary ![](https://kaskr.github.io/adcomp/TMB_components.png) --- # `stelfi`
CRAN: R package version 0.0.1. (2022)
stelfi: Hawkes and Log-Gaussian Cox Point Processes Using Template Model Builder
Charlotte M. Jones-Todd; Alec van Helsdingen
<br> <br> .center[ <img src="img/hawked_fitted.png" width ="90%" /> ] --- #
.center[ <img src="img/niwa.png" width ="60%" /> ] --- # A self-exciting point process (Hawkes model) <br> <br> `$$\lambda(t) = \color{red} \mu + \color{blue} \alpha \Sigma_{i:\tau_i<t}\text{exp}(-\color{green}\beta * (t-\tau_i))$$` - `\(\color{red} \mu\)`, background rate - `\(\color{blue} \alpha\)`, increase in intensity after an event - `\(\color{green}\beta\)`, exponential decay - `\(\Sigma_{i:\tau_i<t} \cdots\)`, historic dependence - `\(\frac{\color{blue} \alpha}{\color{green}\beta}\)`, branching ratio (average number events triggered by an event) - `\(\frac{1}{\color{green}\beta}\)`, rate of decay of self-excitement .center[ <img src="img/hawkes_example.png" width ="50%" /> ] --- # Log-likelihood (it's nasty) <br> <br> `$$\sum_{i=1}^k \text{log} \left [\lambda + \alpha \sum_{j=1}^{i-1}\text{exp}(-\beta(t_i - t_j))\right ] -\lambda t_k + \frac{\alpha}{\beta} \sum_{i=1}^k \left [ \text{exp}(-\beta(t_k - t_i)) - 1\right ]$$` `$$\vdots$$` `$$\sum_{i=1}^k \text{log} \left [\lambda + \alpha A(i)\right ] -\lambda t_k + \frac{\alpha}{\beta} \sum_{i=1}^k \left [ \text{exp}(-\beta(t_k - t_i)) - 1\right ]$$` where, `$$A(i) = \text{exp}(-\beta(t_i - t_{i-1}))(1 + A(i-1)).$$` --- # Temporal rate of retweets .center[ <img src="img/niwa_fit.png" width ="80%" /> ] --- # Temporal rate of retweets <br> <br> <br> `$$\lambda(t) = \color{red} \mu + \color{blue} \alpha \Sigma_{i:\tau_i<t}\text{exp}(-\color{green}\beta * (t-\tau_i))$$` + `\(n = 4890\)` retweets over `\(\text{T} = 3143\)` mins (~2 days) + `\(\color{red} {\hat{\mu}} \text{T} = 0.063 \times 3143 \sim 198\)` 'baseline' tweets + Expected number of retweets triggered by any one tweet `\(\frac{\color{blue}{\hat{\alpha}}}{\color{green}{\hat{\beta}}} \sim 0.94\)` + Rate of decay for the self-excitement `\(\frac{1}{\color{green}{\hat{\beta}}} = \frac{1}{0.079} \sim 12\)` mins --- #
<video width="500" height="20" controls> <source src="img/whale.mp3" type="video/mp4"> </video> -- .center[ <img src="img/whale_data.png" width ="60%" /> ] --- # A self-exciting cue rate model <br> <br> <br> `$$\lambda(t) = \color{red} {\mu(t)} + \color{blue} \alpha \Sigma_{i:\tau_i<t}\text{exp}(-\color{green}\beta * (t-\tau_i))$$` where `$$\text{log}(\color{red} {\mu(t)}) = \beta_{1} I_{s(t)} + \beta_2 d(t) + \beta_3 r(t)$$` - `\(d(t)\)`, depth - `\(r(t)\)`, rate of descent (+ve when descending, -ve when ascending) - `\(I_{s(t)} = 0\)` on 'surface' `\(= 1\)` when in 'deep water' --- # Underdispersion <br> <br> Now, a Hawkes Process is an inhomogeneous Poisson process: + at any time `\(\tau_i\)` the number of events `\(N(t) \sim \text{Poisson}( \int_0^{\tau_i} \lambda(t) dt)\)`, + therefore the difference between the compensators `\(\int_0^{\tau_i} \lambda(t) dt\)` for consecutive events assumes an exponential distribution with mean 1... -- <br> <br> But, this is not the case here so, we assume a Weibull distribution with dispersion parameter `\(k\)` + when `\(k = 1\)` we have an exponential distribution again. --- # Cue rate .center[ <img src="img/whale_fit.jpeg" width ="70%" /> ] --- # Dispersion parameter <br> <br> .center[ <img src="img/whale_dispersion.png" width ="90%" /> ] --- #
<video width="500" height="20" controls> <source src="img/whoop.mp3" type="video/mp4"> </video> -- .center[ <img src="img/sasquatch.png" width ="60%" /> ] --- #
Sasquatch/Bigfoot .pull-left[ <br> <br> ![](https://upload.wikimedia.org/wikipedia/en/thumb/9/99/Patterson%E2%80%93Gimlin_film_frame_352.jpg/230px-Patterson%E2%80%93Gimlin_film_frame_352.jpg)] .pull-right[<img src = https://upload.wikimedia.org/wikipedia/commons/thumb/1/14/Pikes_peak_highway_big_foot.jpg/450px-Pikes_peak_highway_big_foot.jpg width=60%/>] [![Bigfoot Field Researchers Organization](https://www.bfro.net/images/bionics_v1_1213.jpg)](https://www.bfro.net/) --- # A marked LGCP Setting `\(m_i = 1\)` if the Bigfoot sighting is classified as clear (Class A) and `\(m_i = 0\)` if the sighting is not (class B). <br> <br> .center[ <img src="img/bf_marked.jpg" width ="80%" /> ] --- # A joint model <br> <br> <br> <br> The model: `$$\Lambda(\boldsymbol{s}) = \text{exp}(\beta_0 + \beta_1 x_{\text{elev}}(s) + G(\boldsymbol{s}) + \epsilon)$$` `$$\text{logit}(p(\boldsymbol{s}))^{-1} = \beta_{0^m} + \beta_1^m x_{\text{elev}}(s) + G_m(\boldsymbol{s}) +\alpha_{m}\; G(\boldsymbol{s}) + \epsilon_{m}$$` where `\(m(s) \sim \text{Bernoulli}(p(\boldsymbol{s}))\)` and the spatial intensity of all sightings is, as previously, `\(\Lambda(\boldsymbol{s})\)`. A spatial covariate, `\(x_{\text{elev}}(s)\)` the elevation in kilometers. --- # A joint model .pull-left[ <br> <br> <br> | Parameter | est. | se | |-----------|---------|------| | `\(\beta_0\)` | -0.823 | 0.358 | | `\(\beta_1\)` | 0.114 | 0.251 | | `\(\beta_0^m\)` | 0.227 | 0.284 | | `\(\beta_1^m\)` | -0.372 | 0.178 | | `\(\alpha_m\)` | 0.044 | 0.063 | ] .pull-right[ <img src="img/bf_joined.png" height ="70%" /> ] --- # Estimated mark distribution .center[ <img src="img/bf_prob.png" height ="70%" /> ] --- # But, is seeing Bigfoot contagious? <br> <br> <br> .center[ <img src="img/hawked_fitted.png" width ="90%" /> ] --- # So, is seeing Bigfoot contagious? <br> <br> `$$\lambda(t) = \color{red} \mu + \color{blue} \alpha \Sigma_{i:\tau_i<t}\text{exp}(-\color{green}\beta * (t-\tau_i))$$` <br> <br> + `\(n = 972\)` sightings over `\(\text{T} = 2188\)` days + `\(\color{red} {\hat{\mu}} \text{T} = 0.12 \times 2188 \sim 263\)` baseline sightings + Expected number of sightings triggered by any one sighting `\(\frac{ \color{blue}{\hat{\alpha}}}{ \color{green}{\hat{\beta}}} = \frac{0.06}{0.09} = \frac{2}{3}\)` + Expected number of descendants per sighting `\(\frac{\color{green}{\hat{\beta}}}{\color{green}{\hat{\beta}} - \color{blue}{\hat{\alpha}}} = \frac{0.09}{0.09 - 0.06} = 3\)` + Rate of decay for the self-excitement `\(\frac{1}{\color{green}{\hat{\beta}}} = \frac{1}{0.09} \sim 11\)` days --- # A spatiotemporal self-exciting process <br> <br> `$$\lambda(\boldsymbol{s},t) = \color{red} \mu + \color{blue} \alpha \Sigma_{i:\tau_i<t}\left [ \text{exp}(-\color{green}\beta * (t-\tau_i)) \color{purple}{K_i(\boldsymbol{s} - \boldsymbol{x}_i, t - \tau_i)} \right ] + \color{orange} {G(\boldsymbol{s})} + \epsilon$$` where `\(\boldsymbol{x}_i\)` are the spatial locations. The spatial self-excitement kernel is given by `\(\color{purple}{K_i(\boldsymbol{s} - \boldsymbol{x}_i, t - \tau_i)} \sim \text{Normal}(0, \boldsymbol{Q^{-1}})\)`, can either be time-independent where `\(\boldsymbol{Q^{-1}} = \begin{bmatrix} \sigma_x^2 & \rho \sigma_x \sigma_y \\ \rho \sigma_x \sigma_y & \sigma_y^2 \end{bmatrix}\)` or time-dependent where `\(\boldsymbol{Q^{-1}} = \begin{bmatrix} \sigma_x^2 & \rho \sigma_x \sigma_y \\ \rho \sigma_x \sigma_y & \sigma_y^2 \end{bmatrix}\times (t_j - t_i)\)` for `\(t_j > t_i\)`. `\(\color{orange} {G(\boldsymbol{s})}\)` is an (optional) Gaussian random field. --- # Reported Bigfoot sightings .center[ <img src="img/sasquatch.png" width ="60%" /> ] --- # Spatiotemporal self-exciting process .center[ <img src="img/stelfi.png" width ="70%" /> ] --- # Other work: self-exciting SCR .footnote[.tiny[Alec van Helsdingen's work, don't ask me too many questions]] The idea is to model `\(\lambda_{ij}(t)\)`, the 'intensity' of animal `\(i\)` at camera `\(j\)` over time `\(t\)`: `$$\lambda_{ij}(t) = \mu_0 \left[H_{ij} + \text{exp}(-\beta (t - \tau_i(t)))(S_{ij}(t) - H_{ij})\right]$$` - `\(H_{ij}\)` bivariate normal centered on the home range - `\(S_{ij}(t)\)` bivariate normal 'spike' in intensity immediately after detection centered on the camera -- .pull-left[ <img src="img/t00.png" width ="70%" /> ] -- .pull-right[ <img src="img/gif.gif" width ="70%" /> ] --- # Other work: Multivariate Hawkes <br> <br> .center[ <img src="img/nessie_hists.png" width ="90%" /> ] .footnote[.tiny[
what data are these?]] --- # Other work: Multivariate Hawkes <br> <br> .center[ <img src="img/nessie.png" width ="90%" /> ] .footnote[.tiny[
what data are these?]] --- # GOF --- # [
